Original: $960.00
-65%$960.00
$336.00The Story
Heavy Duty Recovery Power

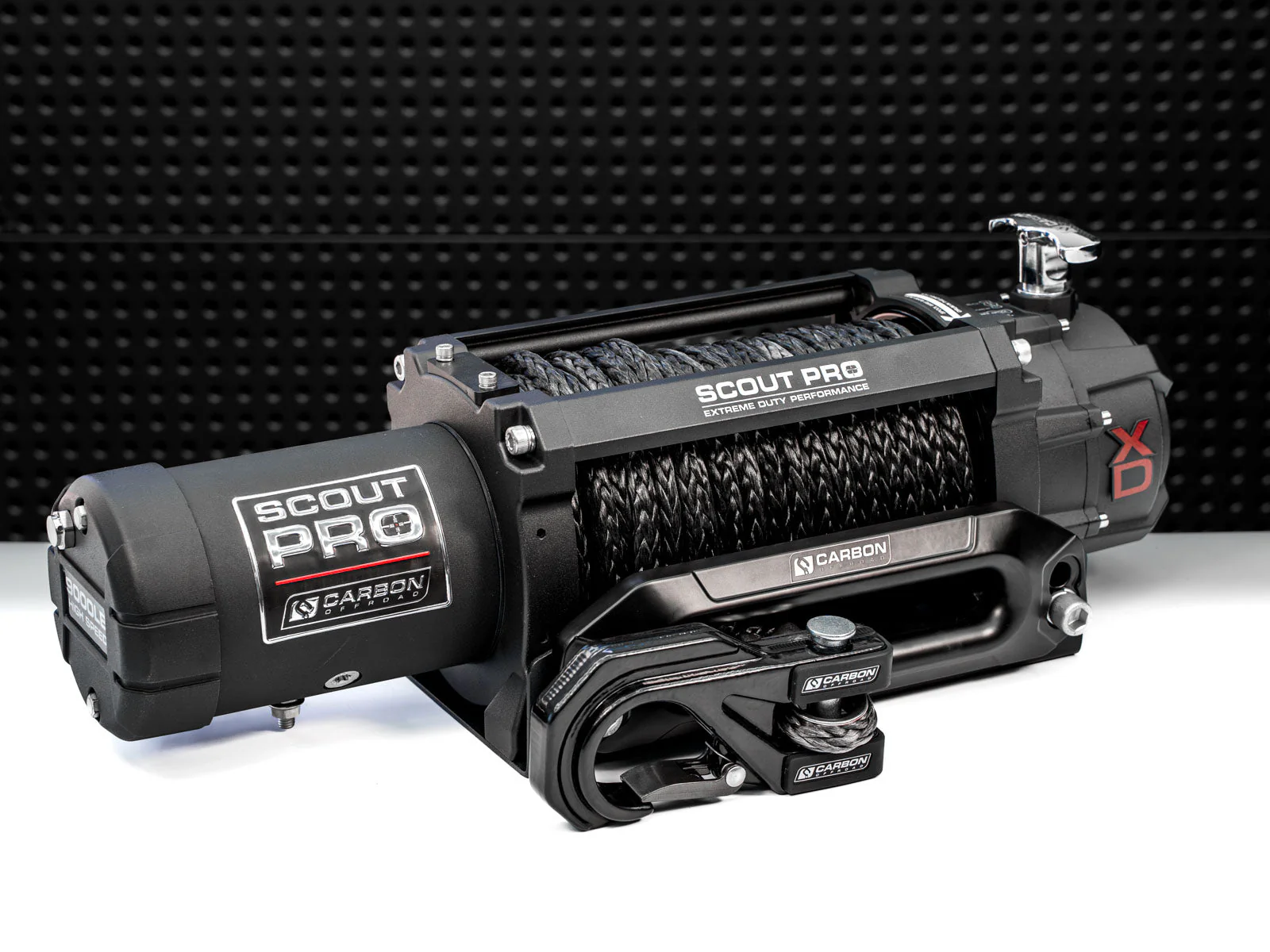

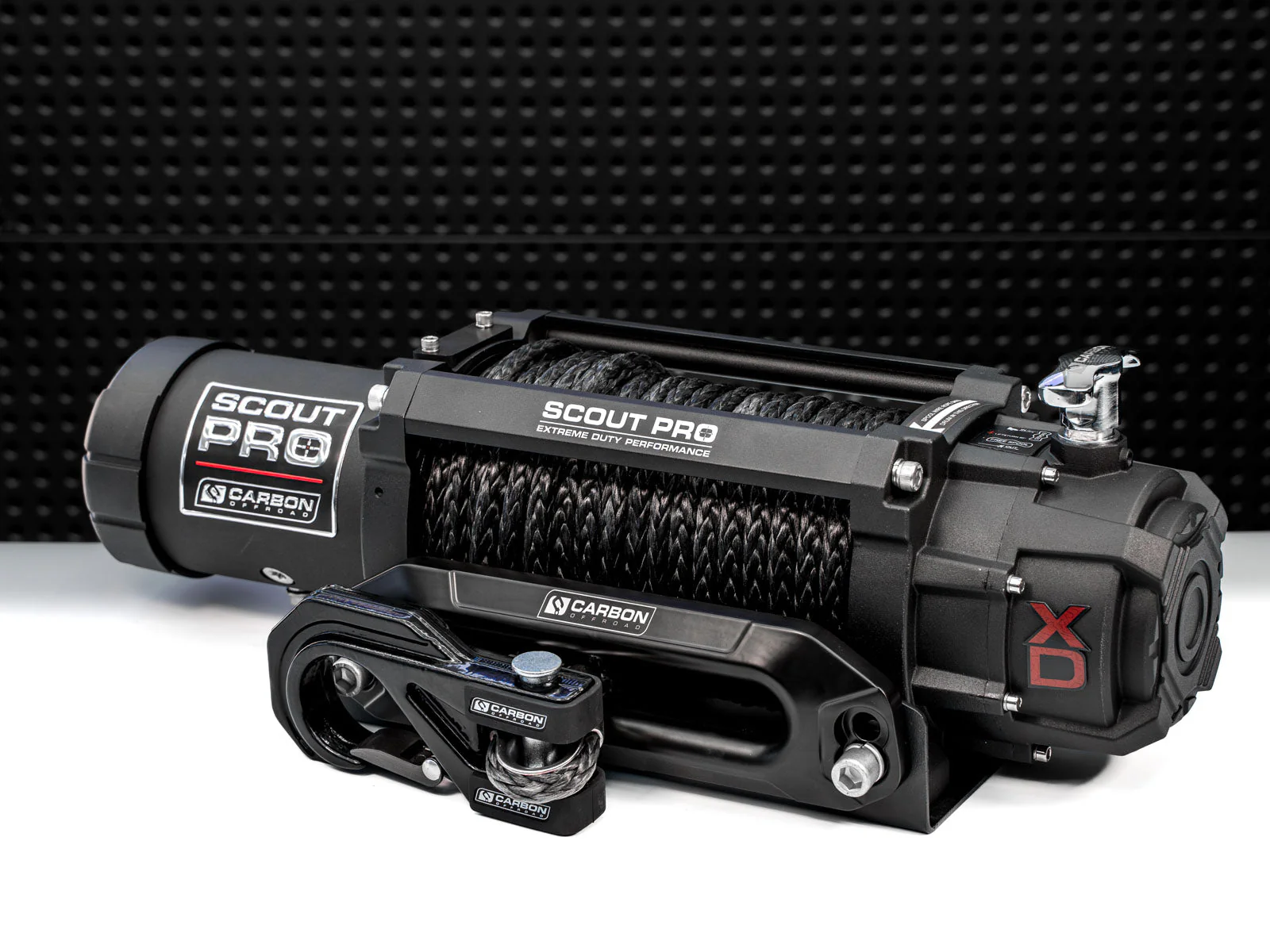

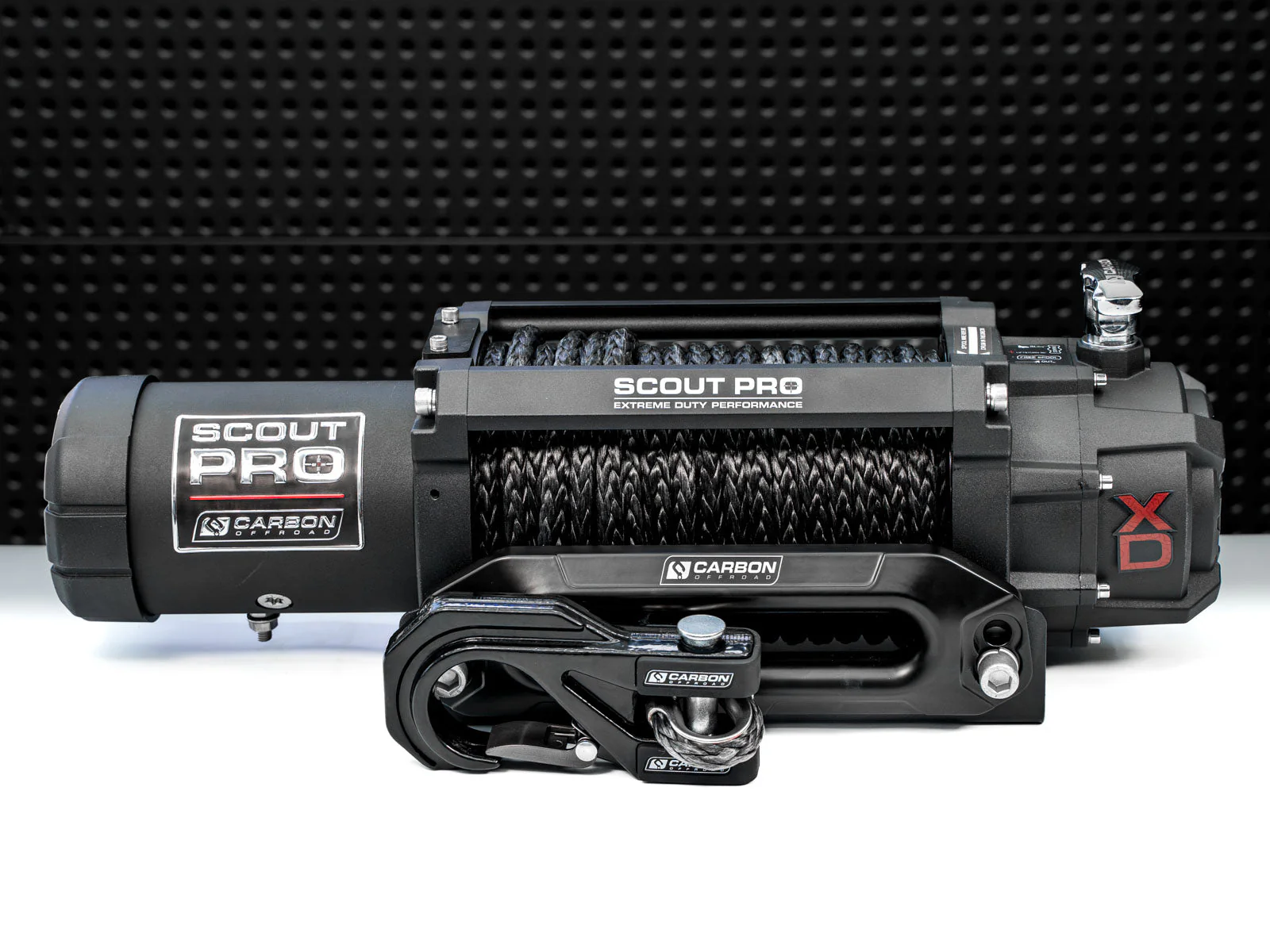

The Carbon Offroad CW-XD15-V3 is a heavy-duty recovery solution delivering an immense 6803kg (15000lbs) of pulling capacity via a powerful 12V DC 7.0 HP series wound motor.
Overview
Engineered for the Outback. Built for reliable off-road recovery, this winch utilises a 3-stage planetary geartrain with a 218:1 gear ratio and a rotating ring gear. It features an automatic brake inside the motor bracket for secure load holding during highly technical recoveries.

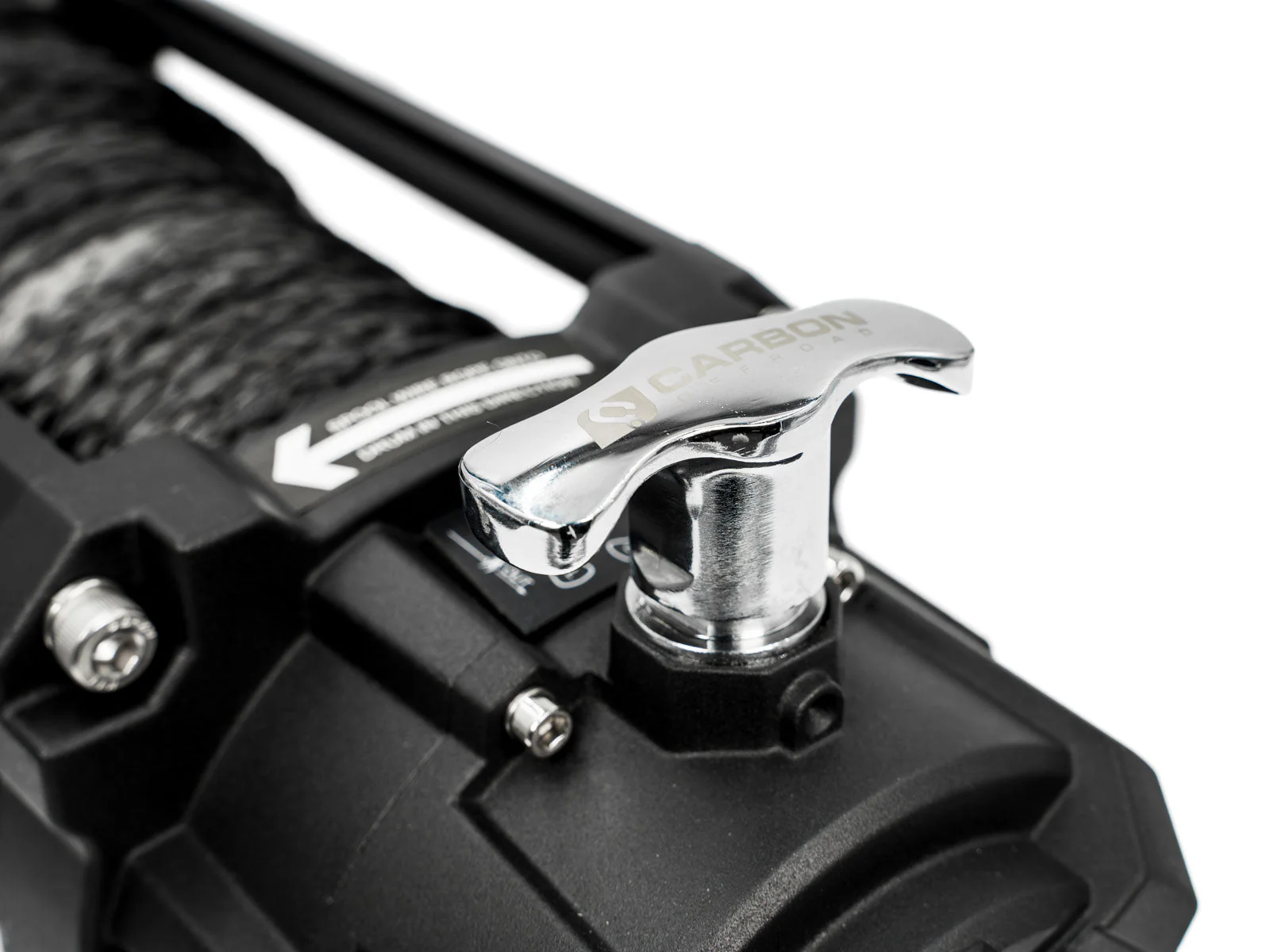

You can also upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, which is specifically designed for seamless integration with Carbon Offroad 12K and Scout Pro winches.
Features
- Extreme Pulling Capacity: Delivers 6803kg (15000lbs) of single-line pull, perfect for heavily loaded 4WDs and extreme off-road scenarios.
- Dual Control Options: Comes standard with a wired remote (featuring a 3.6m / 11.8ft lead) and a wireless remote for flexible, safe operation.
- Reliable Braking: An automatic brake in the motor bracket ensures absolute control and prevents rollback under heavy loads.
- MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead for superior synthetic rope protection.
- Comprehensive Warranty: Backed by a Lifetime Mechanical Warranty, a 5-Year Electrical Warranty, and a 5-Year Water Ingress Protection Warranty.
Contents
1 x Carbon Offroad CW-XD15-V3 Winch
1 x Synthetic Rope (11mm x 24m / 7/16" x 78.7ft)
1 x Carbon Offroad MegaPro Fairlead
1 x Control Box Complete with Cables
1 x Wired Remote Control (3.6m / 11.8ft lead)
1 x Wireless Remote Control
1 x Mounting Bolts Kit
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD15-V3 |
| Rated Line Pull | 6803kg (15000lbs) single-line |
| Motor | 12V DC 7.0 HP series wound |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 218:1 |
| Brake | Automatic brake in the motor bracket |
| Synthetic Rope | 11mm x 24m (7/16" x 78.7ft) |
| Fairlead | MegaPro CNC billet type 3 hard anodised |
| Drum Dimensions | 63.5mm x 224mm (2.5" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10.0" x 4.5") |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 556.5mm x 158mm x 187mm (21.9" x 6.2" x 7.4") |
| Packing Dimensions (L x W x H) | 580mm x 200mm x 220mm (22.8" x 7.9" x 8.7") |
| Installed Weight | 26.7kg (58.9 lbs) |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 27.9 (8.5) | 65 | 1 / 15000 (6810) |
| 2000 (910) | 11.8 (3.6) | 120 | 2 / 12700 (5765) |
| 6000 (2720) | 9.5 (2.9) | 160 | 3 / 10770 (4890) |
| 10000 (4540) | 6.6 (2.0) | 215 | 4 / 9130 (4145) |
| 13000 (5900) | 4.6 (1.4) | 265 | - |
| 15000 (6818) | 3.6 (1.1) | 380 | - |
