Extreme Duty Recovery Performance

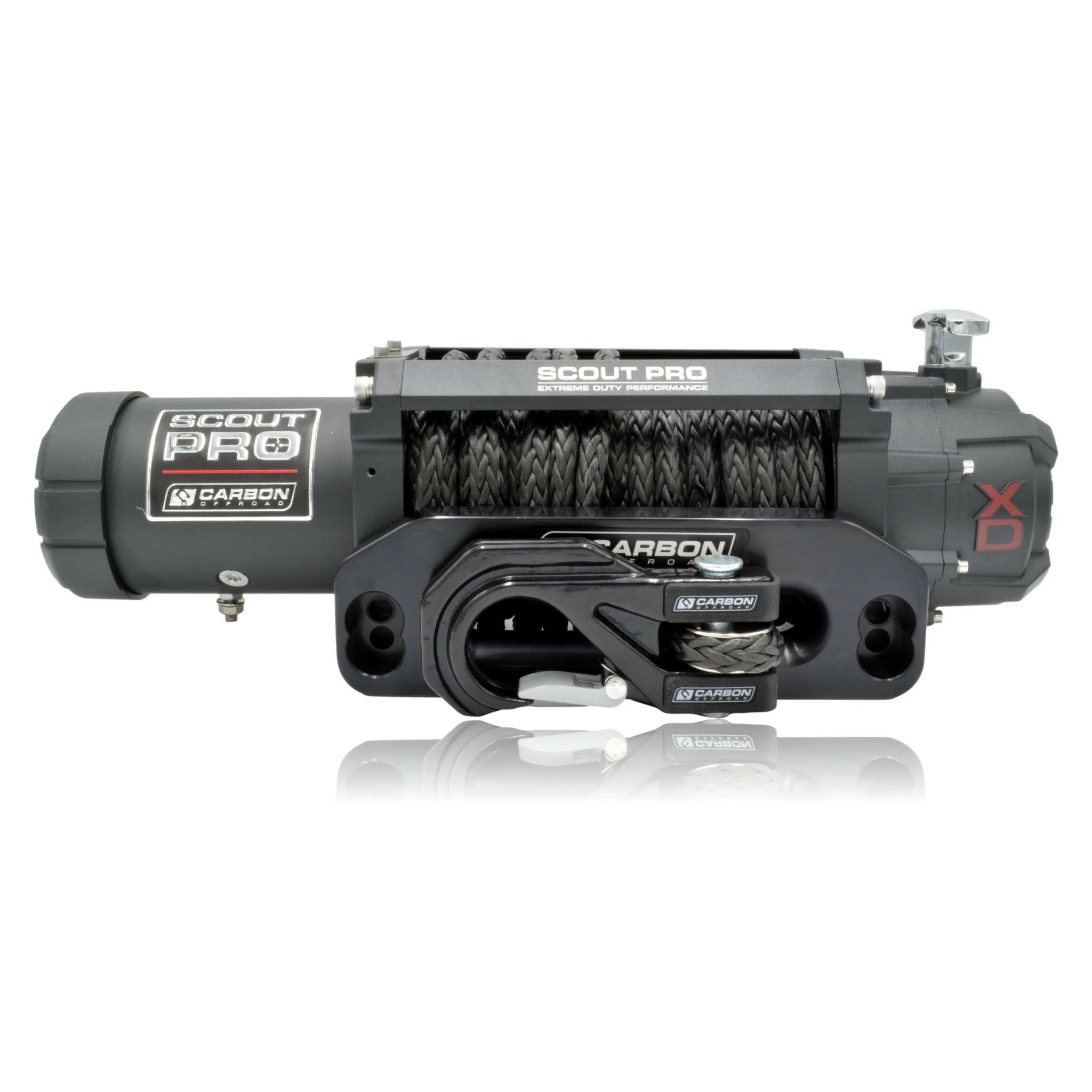

The Carbon Offroad Scout Pro 15000lb Winch V3 is built for frequent winching in harsh offroad conditions, featuring a 7.0HP electric motor and a 218:1 heavy duty performance gearbox.
Engineered for Sustained Recovery
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built for frequent winching in harsh offroad conditions. They are suited to heavily loaded vehicles or towing applications where consistent recovery performance is required.
With larger modulus gearsets compared to the CW-12K and increased motor horsepower, the Scout Pro series is engineered for sustained recovery use. The winch is supplied with a synthetic rope and rope thimble and is compatible with fairleads selected to suit the installation.
Did you know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
The Scout Pro series winches share the same 2023 Version 3 winch chassis as the Carbon Offroad 12K. This allows fitment into many larger 4x4 utes and wagons. Due to the longer 7.0HP motor, clearance and fitment length should be confirmed using the technical drawings prior to installation. Fitment responsibility remains with the end user or installer.
The 6818kg (15000lbs) winch is supplied with 11mm (0.4") high density pre-stretched premium UHMWPE synthetic winch rope rated at 9000kg (19841lbs) minimum breaking strain, fitted with a heavy duty braced rope thimble.
You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
Technical Features
- Chassis: Carbon Winch 2023 V3 winch chassis.
- Motor: 7.0HP electric motor.
- Gearing: 218:1 heavy duty performance gearbox.
- Rope: 11mm (0.4") UHMWPE synthetic winch rope.
- Hardware: HD braced rope thimble.
- Weight: Installed weight of 26.7kg (58.9lbs).
Contents
1 x Carbon Offroad Scout Pro 15000lb Winch V3 (WINCH ONLY)
1 x 11mm (0.4") UHMWPE Synthetic Winch Rope
| Feature | Specification Metric (Imperial) |
|---|---|
| Rated Line Pull | 6818kg (15000lbs) |
| Motor | 7.0HP |
| Gear Ratio | 218:1 |
| Minimum Breaking Strain | 9000kg (19841lbs) |
| Installed Weight | 26.7kg (58.9lbs) |
12V DC Performance Specifications (First Layer of Drum)
| Line Pull Metric (Imperial) | Line Speed Metric (Imperial) | Motor Current |
|---|---|---|
| 0kg (0lbs) | 8.5m/min (27.9fpm) | 65 amps |
| 910kg (2000lbs) | 3.6m/min (11.8fpm) | 120 amps |
| 2720kg (6000lbs) | 2.9m/min (9.5fpm) | 160 amps |
| 4540kg (10000lbs) | 2.0m/min (6.6fpm) | 215 amps |
| 5900kg (13000lbs) | 1.4m/min (4.6fpm) | 265 amps |
| 6818kg (15000lbs) | 1.1m/min (3.6fpm) | 380 amps |
Pull by Layer
| Layer | Line Pull Metric (Imperial) |
|---|---|
| 1 | 6810kg (15000lbs) |
| 2 | 5765kg (12700lbs) |
| 3 | 4890kg (10770lbs) |
| 4 | 4145kg (9130lbs) |
Dimensions
