Carbon Offroad MegaPro Winch Hook

Ultimate Winching Reliability

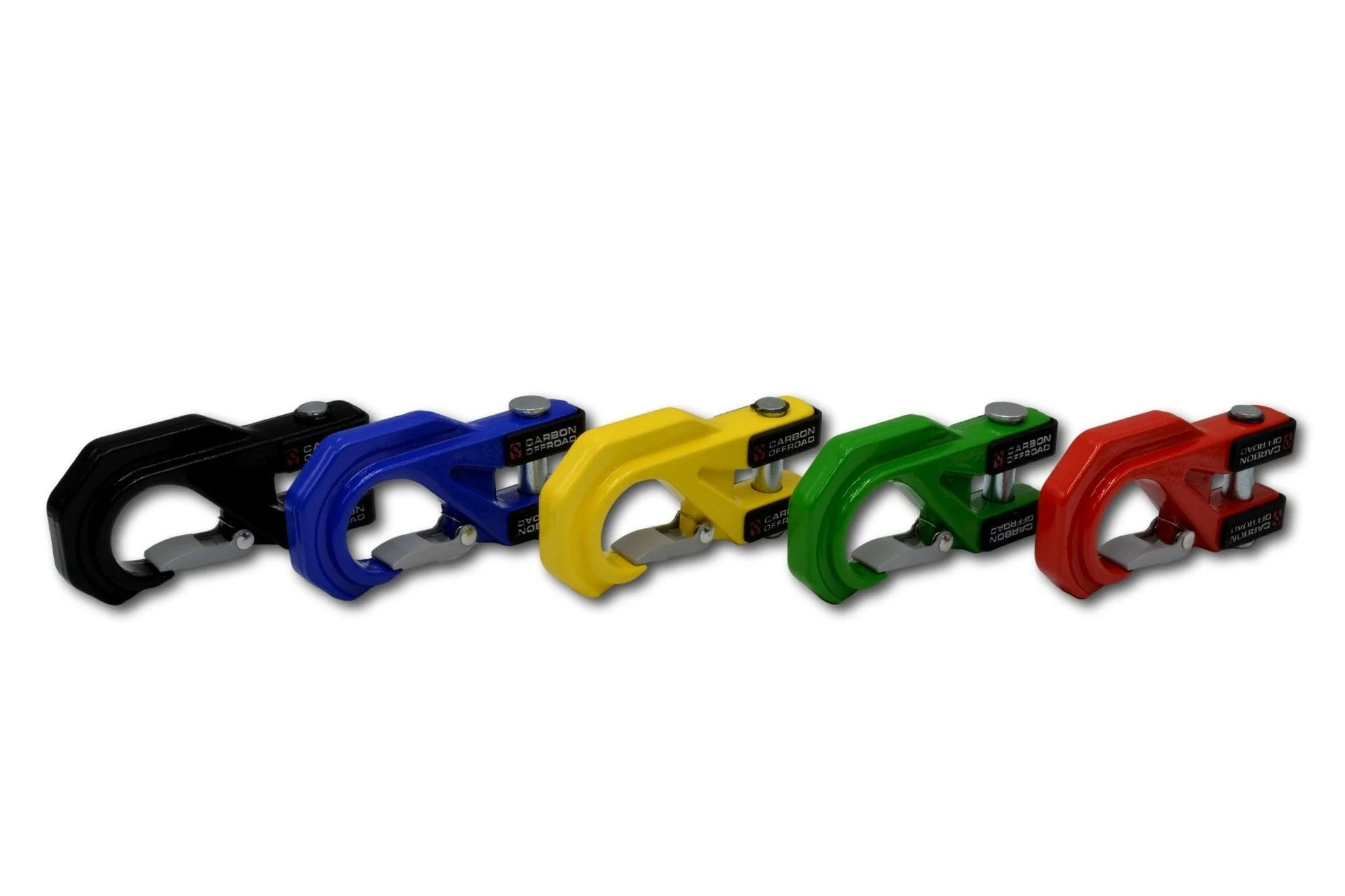

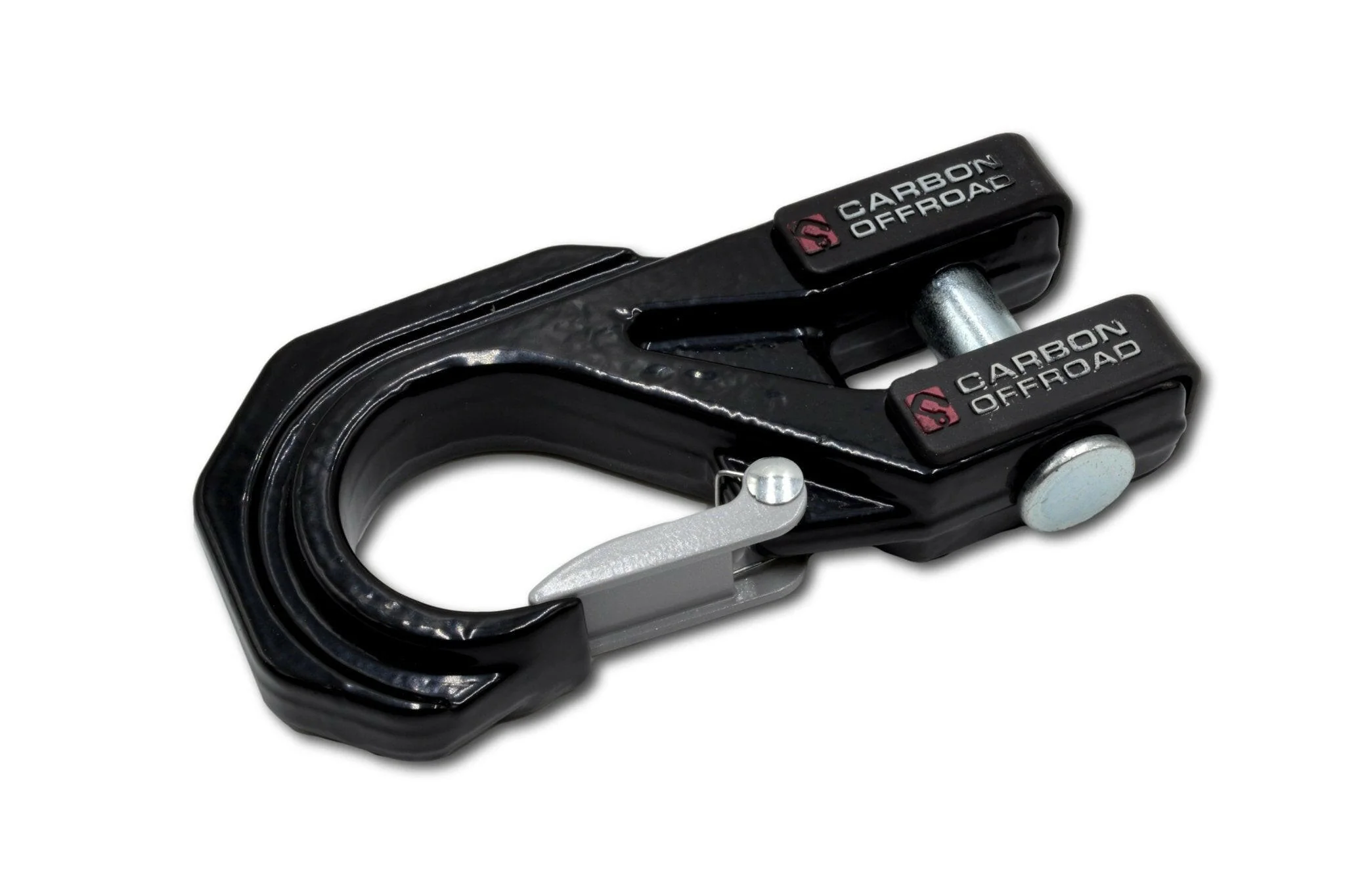

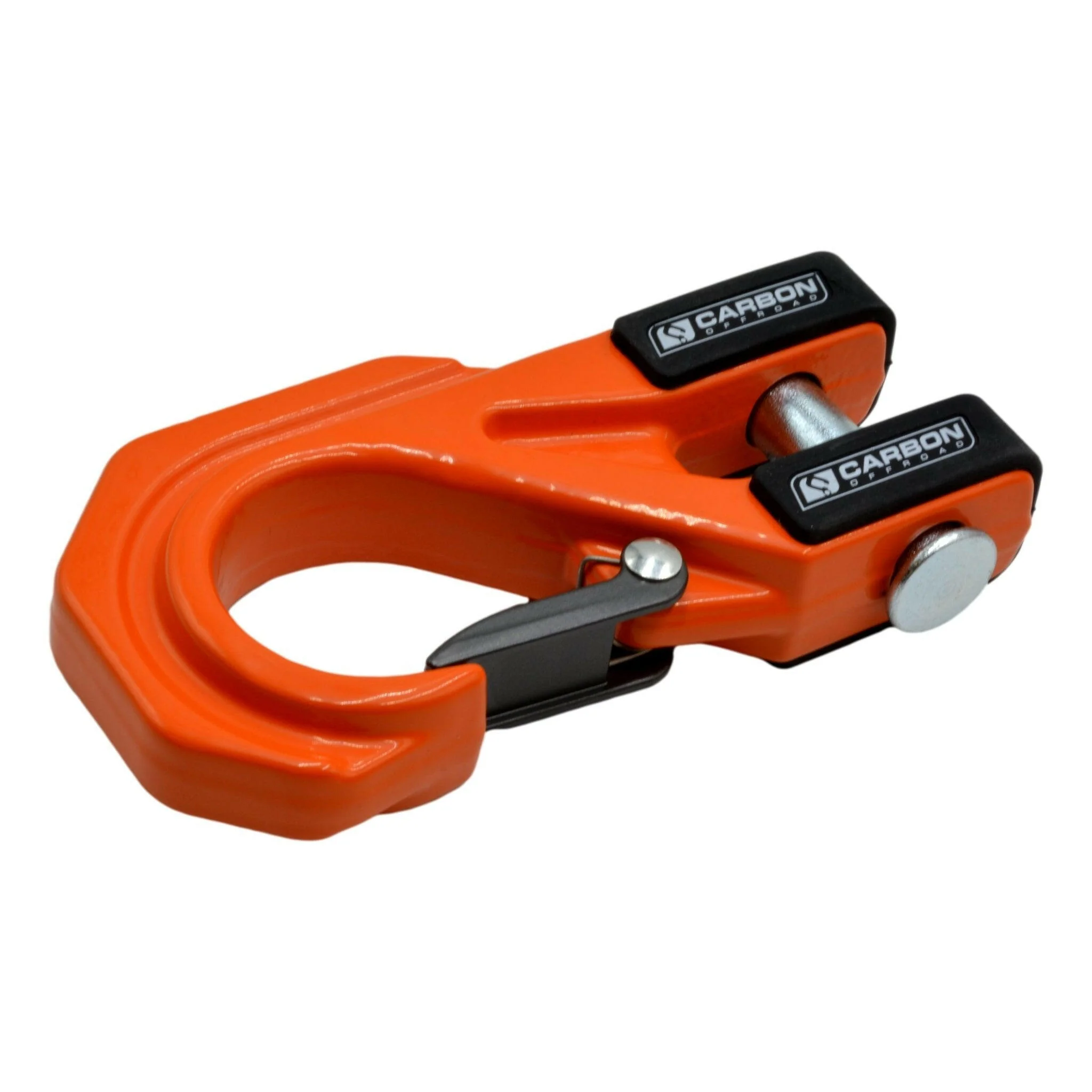

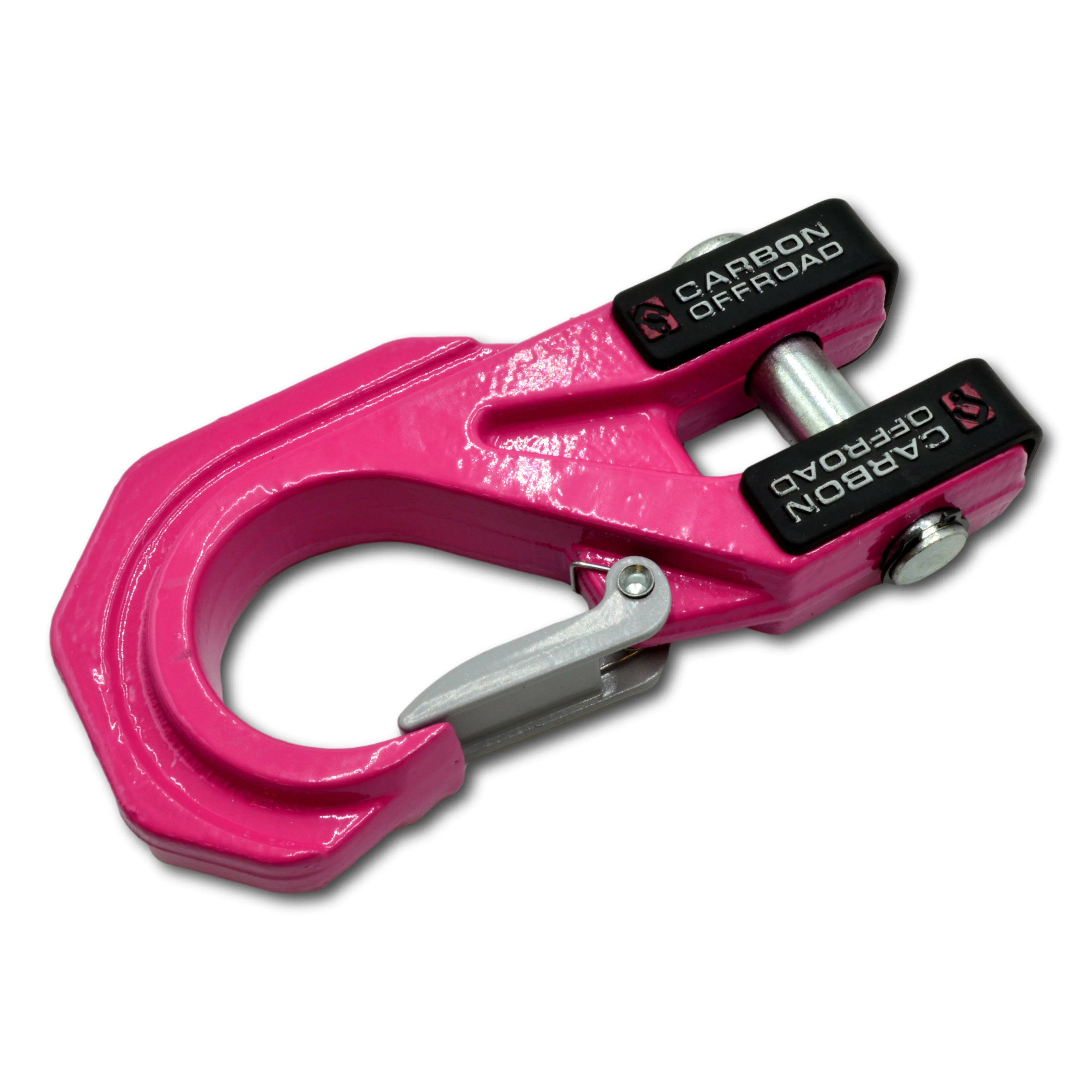

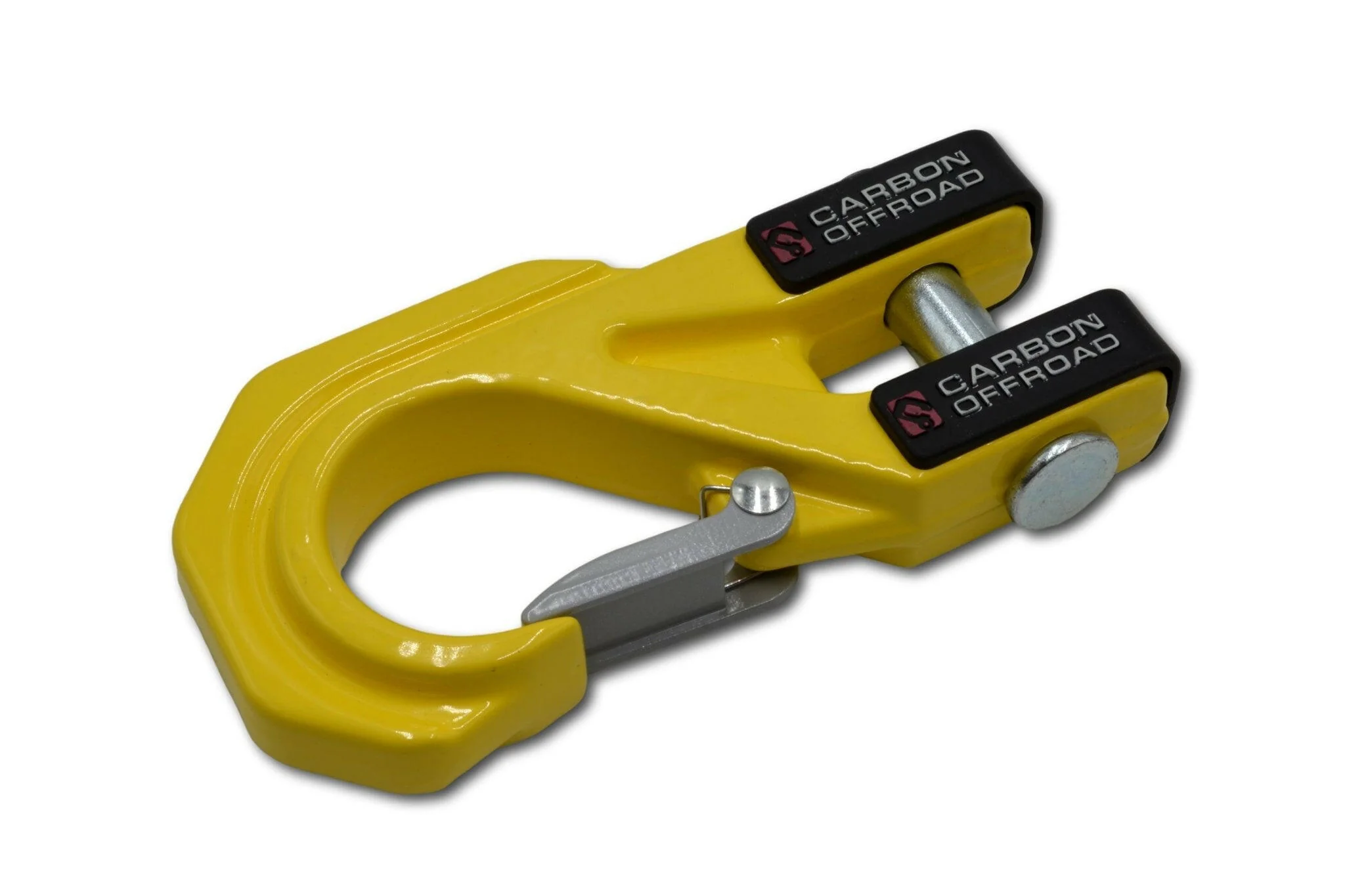

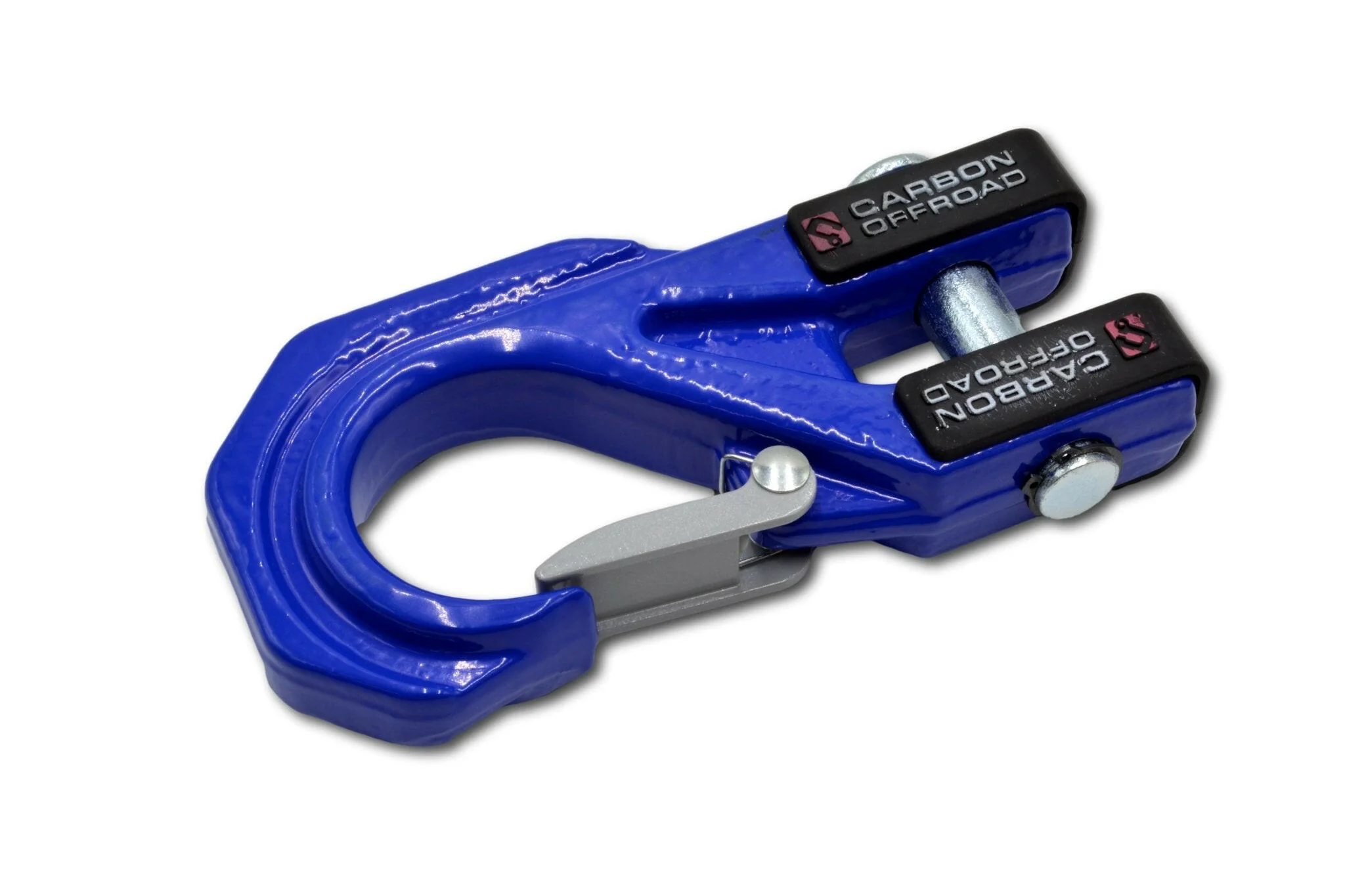

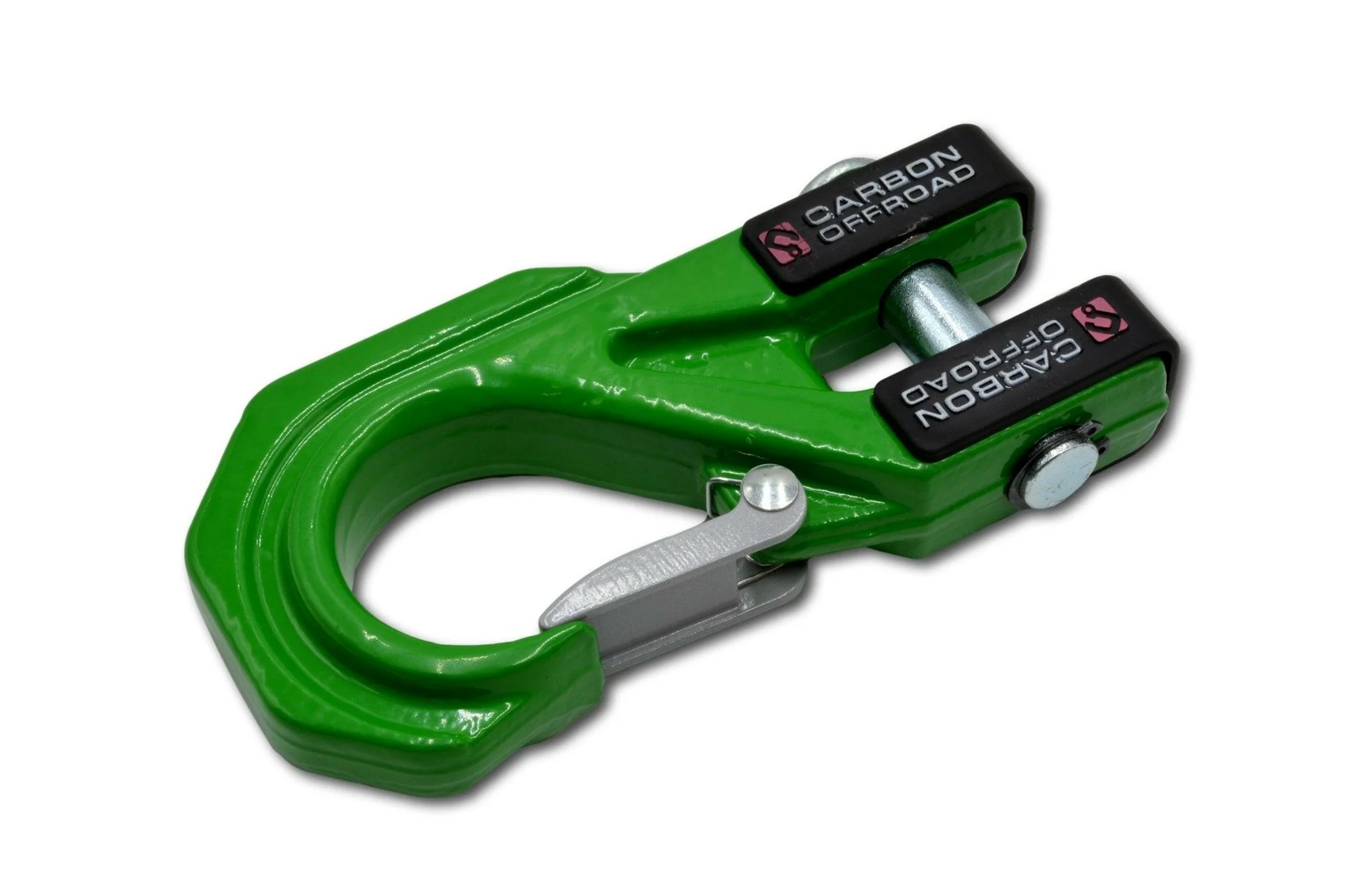

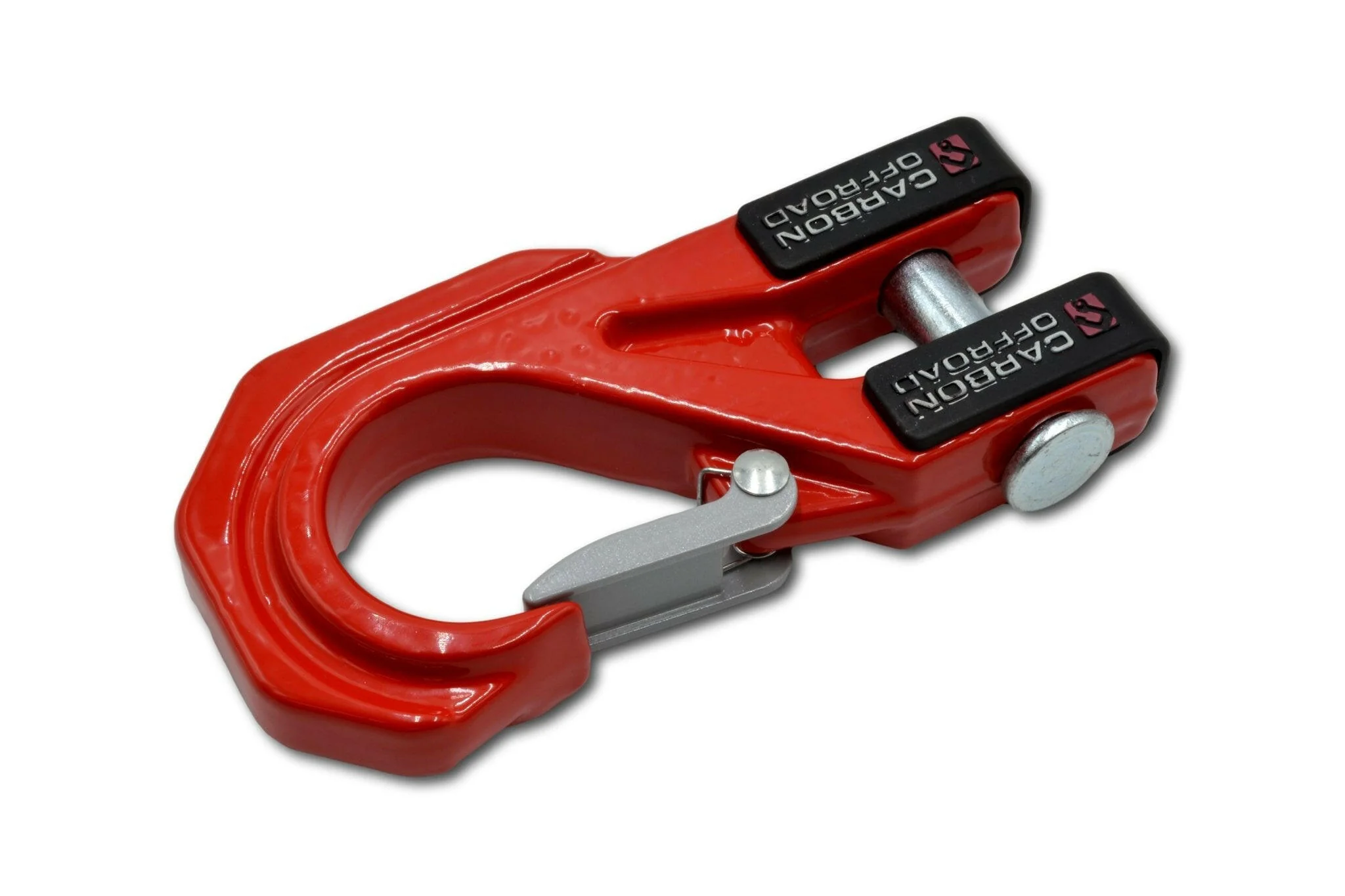

The Carbon Offroad MegaPro Winch Hook is a purpose-built, forged 40Cr winch hook rated for up to 9071.8kg (20000lbs). Featuring an I-beam construction and full through-pin mounting, it offers unmatched durability and easy stowage for any recovery setup.

Overview

The Carbon Offroad MegaPro Winch Hook is the latest innovation from the in-house design team at Carbon Offroad. Engineered from the ground up, this hook is purpose-built specifically for winching applications. It offers a simple, functional, and cost-effective solution for users seeking a reliable winch hook.

Purpose-Built Design & Testing

Unlike generic hooks sourced from lifting and rigging suppliers, the MegaPro Hook is entirely designed and developed from scratch. The team handled everything internally, from concept design and 3D-printed prototypes to real-world testing of form, fit, and function. Advanced FEA (Finite Element Analysis) was used to perfect the structure, optimizing strength while eliminating unnecessary material. The result is a hook that is strong, functional, and ready for real-world use.

Materials & Construction

The hook is forged and heat-treated using 40Cr alloy steel, selected for its excellent strength-to-weight ratio, workability, and reliability under stress. A standout feature of the MegaPro Hook is its I-beam construction, which enhances strength without adding excess weight. The alloy gate is cast to achieve a balance between durability and lightweight performance. This manufacturing process results in a highly durable product designed to withstand demanding winching conditions, essentially creating a near-indestructible hook built to last a lifetime.

Durable Finish

To ensure long-term protection, the hook is coated using a high-quality powder coating process. This finish offers excellent resistance to UV degradation and protects the base material, similar to coatings used on exterior architectural aluminum.

Versatile Functionality

The hook is designed for convenient stowage against the fairlead, either flat or upright. This allows users to easily attach a soft shackle or tree protector loop with one hand and efficiently deploy the rope to the anchor point.

Easy Installation

The MegaPro Hook features a full through-pin mounting system, secured externally with a circlip. This design ensures a simple and secure attachment to your winch rope.

Load Capacity

This hook is rated for safe use with winches up to 9071.8kg (20000lbs), making it suitable for a wide range of heavy-duty recovery applications.

Customizable Rubber Pads

The included rubber pads are press-fit and removable, allowing you to position the logos to suit your setup. Once finalized, they can be permanently secured using rubber cement if desired.

Design Registration & Value

This product is protected under an Australian Registered Design (Design Number: 202116716), highlighting its unique engineering and originality. Carbon Offroad has focused on delivering a high-quality product at an accessible price point, providing excellent value without compromising on performance or durability.

Features

• Construction: Forged and heat-treated 40Cr alloy construction
• Design: Unique I-beam design for strength and weight reduction
• Compatibility: Compatible with winches up to 9071.8kg (20000lbs)
• Finish: Durable powdercoat finish for long-lasting UV and corrosion protection
• Usability: Easy-to-use hook gate for quick soft shackle or tree protector attachment
• Stowage: Flat or end stowable against the fairlead
• Customization: Customizable rubber pads with press-fit and glue-on options
• Installation: Secure through-pin with external circlip for simple installation

Contents

1 x Carbon Offroad MegaPro Winch Hook
1 x Set of removable rubber pads



Feature	Specification Metric (Imperial)
Load Rating	9071.8kg (20000lbs)
Body Material	Forged 40Cr alloy steel
Gate Material	Cast alloy
Finish	Powder coat
Mounting System	Full through-pin with circlip
