$413.70The Story
Extreme Duty Recovery Power
The Carbon Offroad Extreme Duty Scout Pro 20000lb is a colossal recovery powerhouse delivering an unmatched 9072kg (20000lbs) of pulling capacity via a heavy-duty 12V DC 7.0 HP series wound motor.

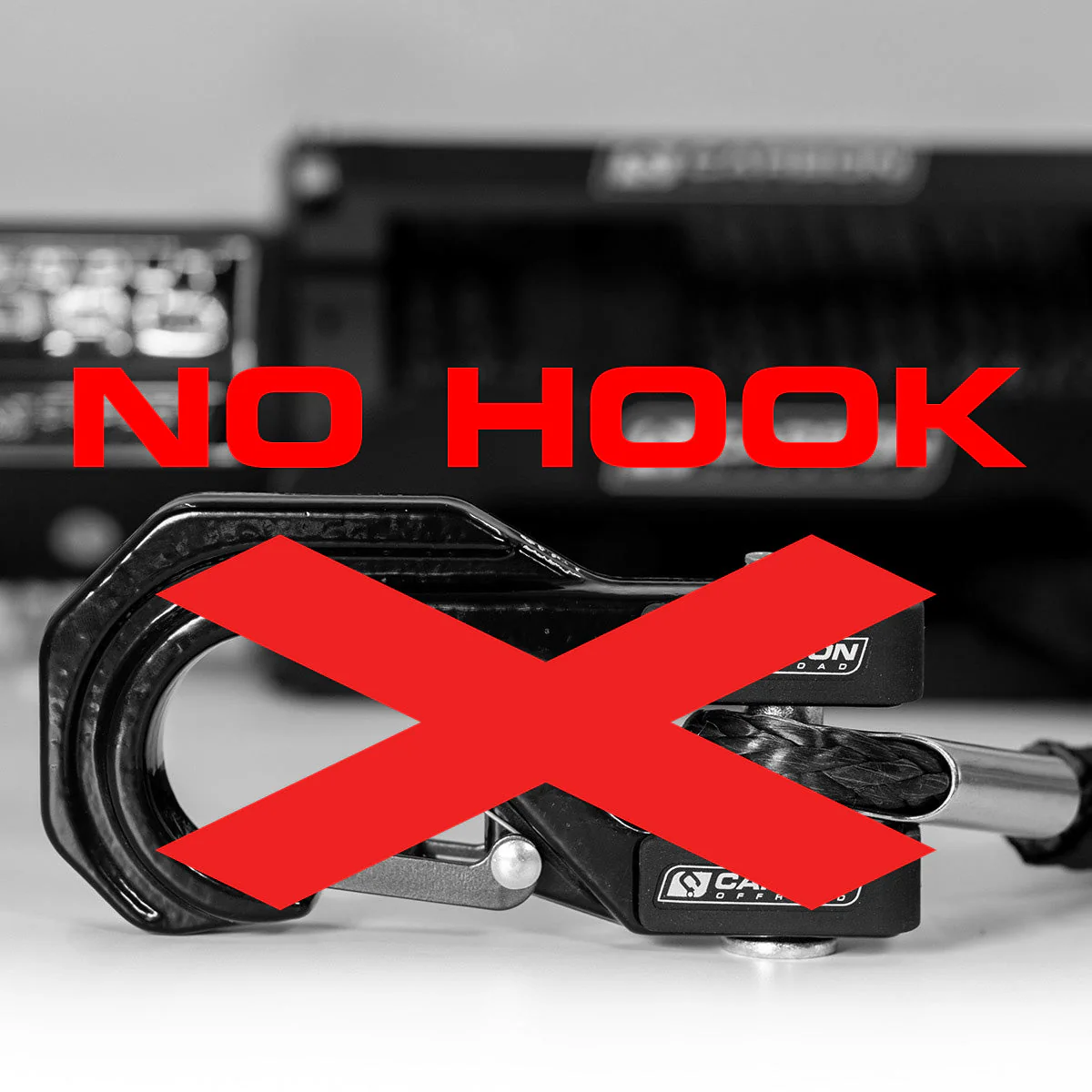

⚠️ PLEASE NOTE: BYO HOOK CONFIGURATION
This listing is for the winch and accessory kit only. No hook is included in this package. It is the perfect option if you already have a preferred hook or shackle setup for your heavy-duty rigging.
Overview
Engineered for the absolute extremes of the Outback. Built for massive rigs, trucks, and the most demanding off-road recoveries, this winch utilizes an ultra-low 3-stage planetary geartrain with a massive 354:1 gear ratio. It features an automatic brake inside the motor bracket for secure load holding when the stakes are highest.
You can also upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, which is specifically designed for seamless integration with Carbon Offroad 12K and Scout Pro winches.
Features
- Unstoppable Pulling Capacity: Delivers a massive 9072kg (20000lbs) of single-line pull, perfect for extremely heavy 4WDs, trucks, and commercial off-road applications.
- Ultra-Low Gearing: Features a 3-stage planetary geartrain with a 354:1 ratio for immense torque and controlled line speeds under heavy load.
- Dual Control Options: Comes standard with a wired remote (featuring a 3.6m / 11.8ft lead) and a wireless remote for flexible, safe operation.
- MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead to protect your high-capacity synthetic rope.
- Comprehensive Warranty: Backed by a Lifetime Mechanical Warranty, a 5-Year Electrical Warranty, and a 5-Year Water Ingress Protection Warranty.
Contents
1 x Carbon Scout Pro 20000lb Winch (CW-XD20NH)
1 x Synthetic Rope (25m x 13mm / 82ft x 1/2")
1 x Carbon Offroad MegaPro Fairlead
1 x Control Box Complete with Cables
1 x Wired Remote Control (3.6m / 11.8ft lead)
1 x Wireless Remote Control
1 x Mounting Bolts Kit
(Note: Hook is not included in this package.)
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD20NH |
| Rated Line Pull | 9072kg (20000lbs) single-line |
| Motor | 12V DC 7.0 HP series wound |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 354:1 |
| Brake | Automatic brake in the motor bracket |
| Synthetic Rope | 25m x 13mm (82ft x 1/2") |
| Fairlead | MegaPro CNC billet type 3 hard anodised |
| Drum Dimensions | 88mm x 224mm (3.46" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10.0" x 4.5") |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 579 x 192 x 224mm (22.8" x 7.6" x 8.8") |
| Packing Dimensions (L x W x H) | 640 x 250 x 345mm (25.2" x 9.8" x 13.6") |
| Winch Weight (Bare) | 30kg (66.1 lbs) with synthetic rope attached |
| Total Kit Weight | 37kg (81.6 lbs) including control box, cables, bolts & fairlead |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 26.2 (8.0) | 70 | 1 / 20000 (9072) |
| 4000 (1814) | 10.8 (3.3) | 145 | 2 / 16140 (7321) |
| 8000 (3629) | 8.5 (2.6) | 230 | 3 / 13520 (6133) |
| 12000 (5443) | 6.2 (1.9) | 310 | 4 / 11660 (5289) |
| 16000 (7257) | 4.6 (1.4) | 390 | - |
| 20000 (9072) | 3.3 (1.0) | 460 | - |
