The Story

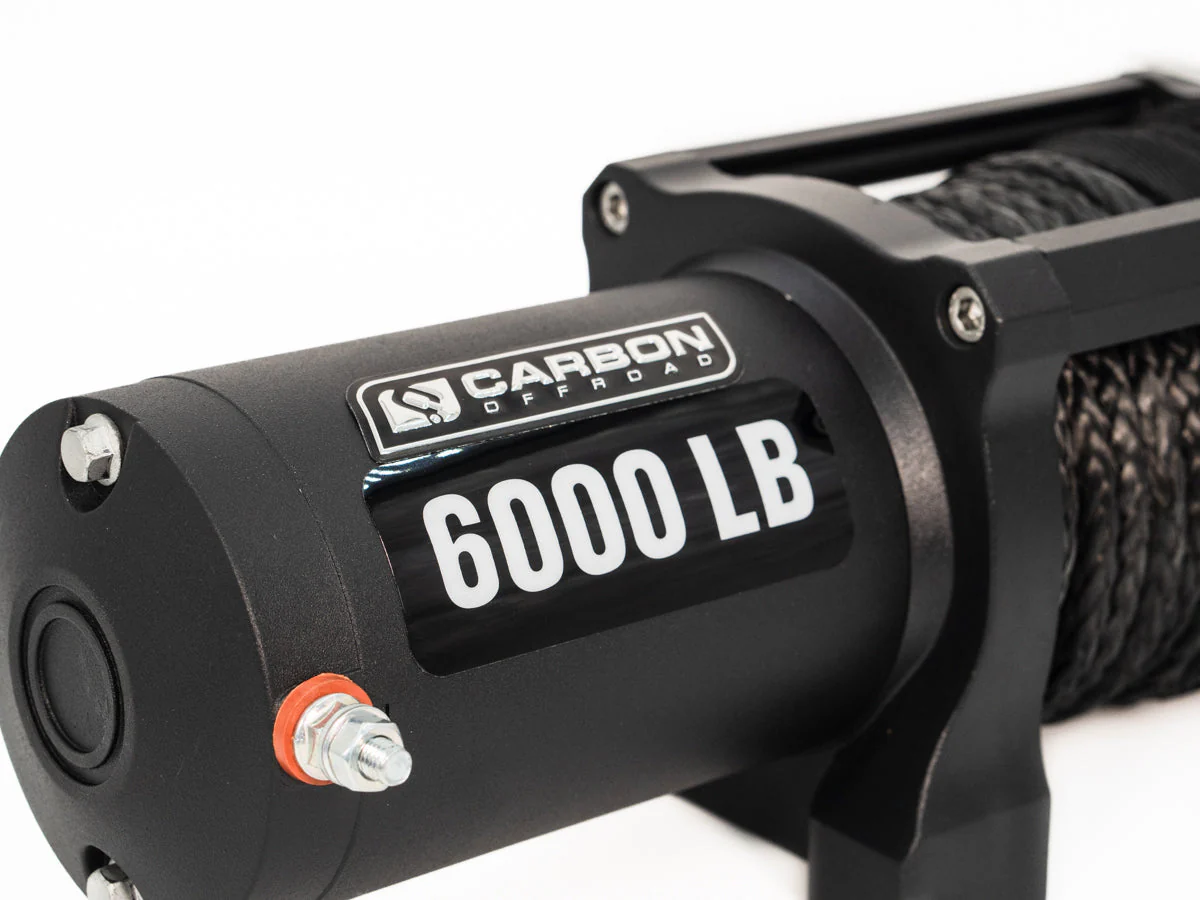

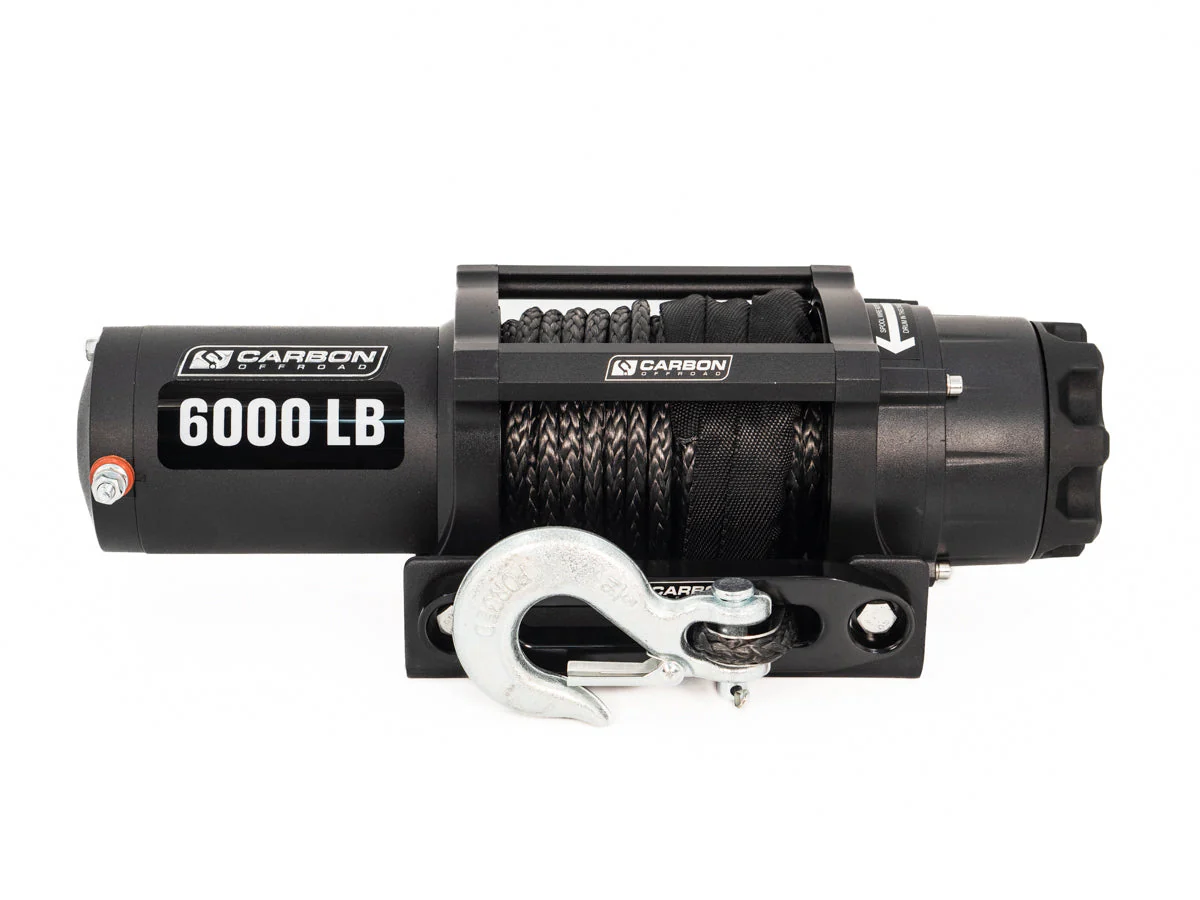

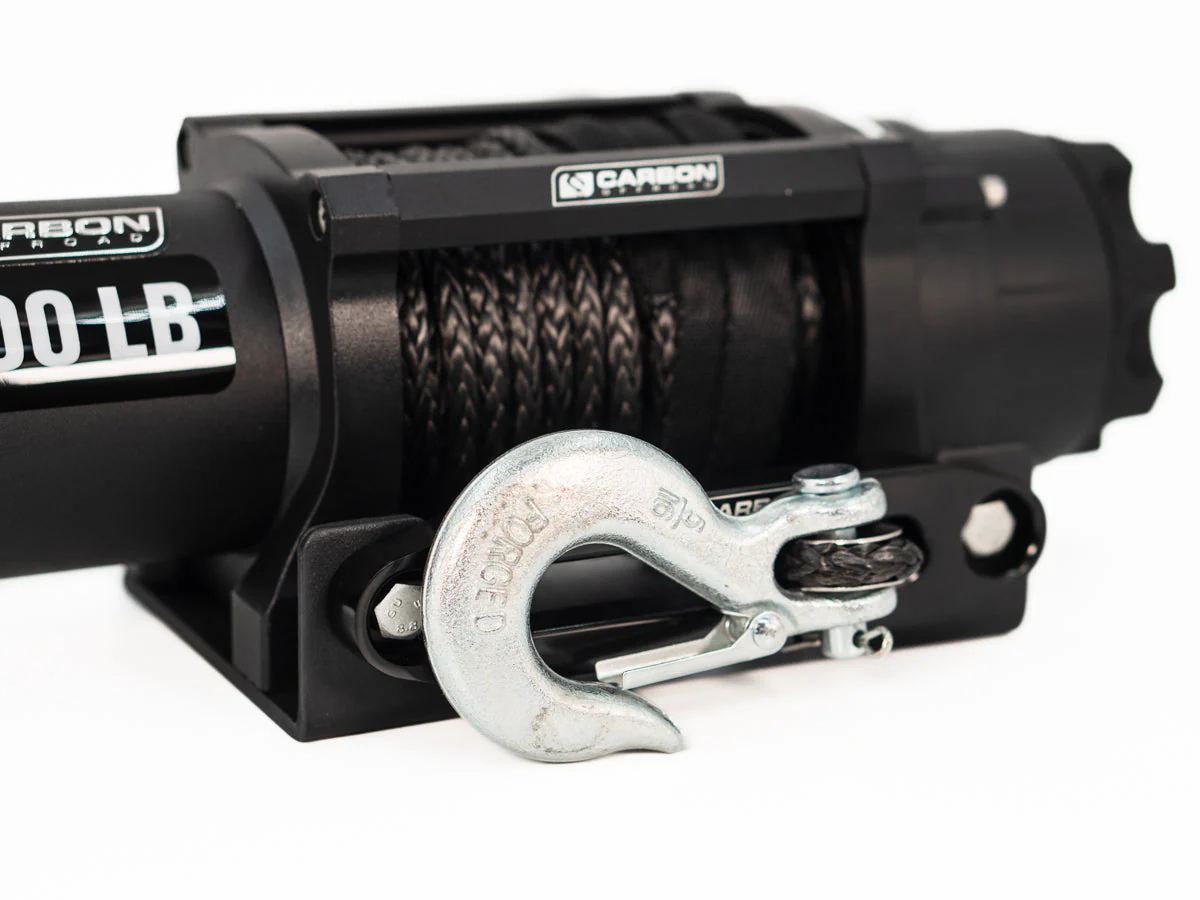

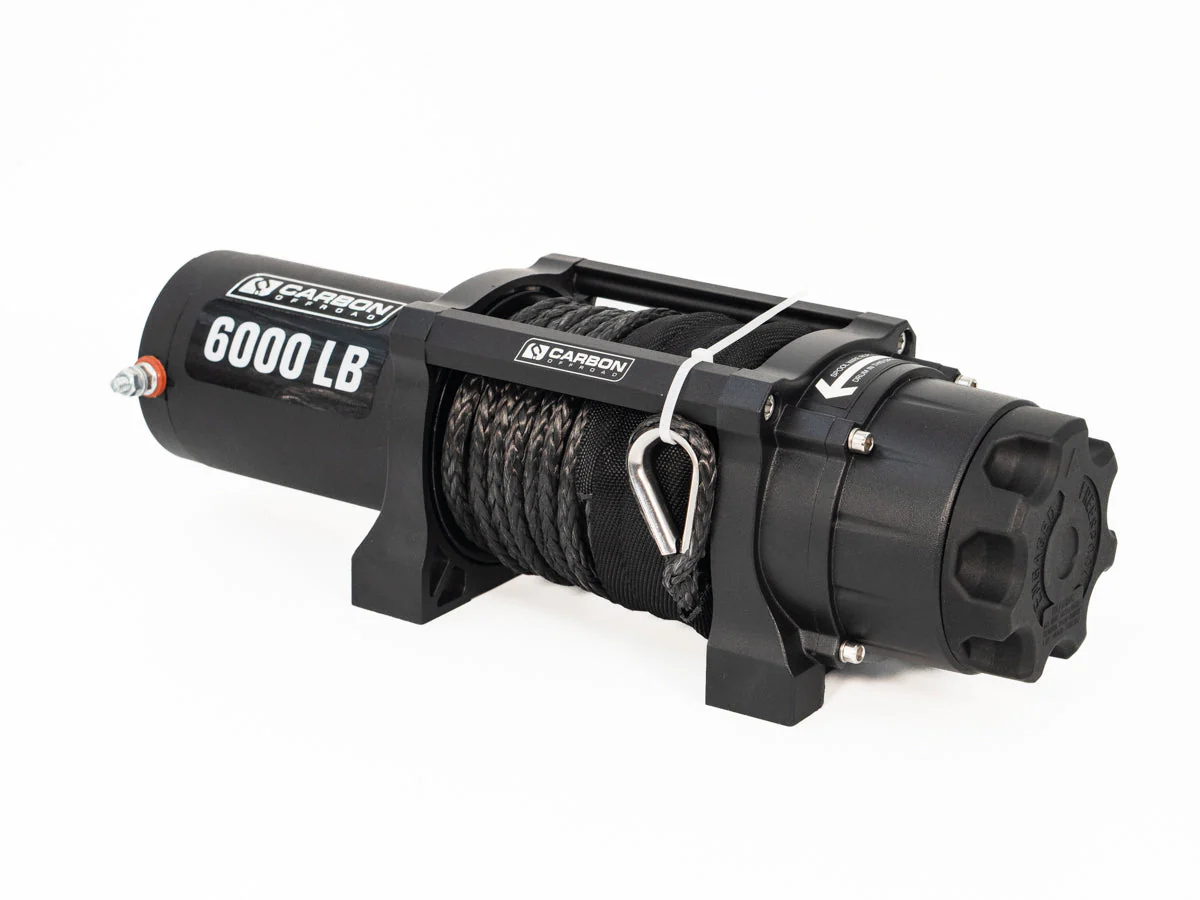

The Carbon Offroad 6000lb ATV/Small 4X4 Winch is a compact and powerful recovery solution featuring a 1.5HP motor and twin wireless remote controllers for maximum operational flexibility.
The Carbon Offroad 6000 lb ATV winch for ATVs, small 4wds, caravans, trailers, boats.

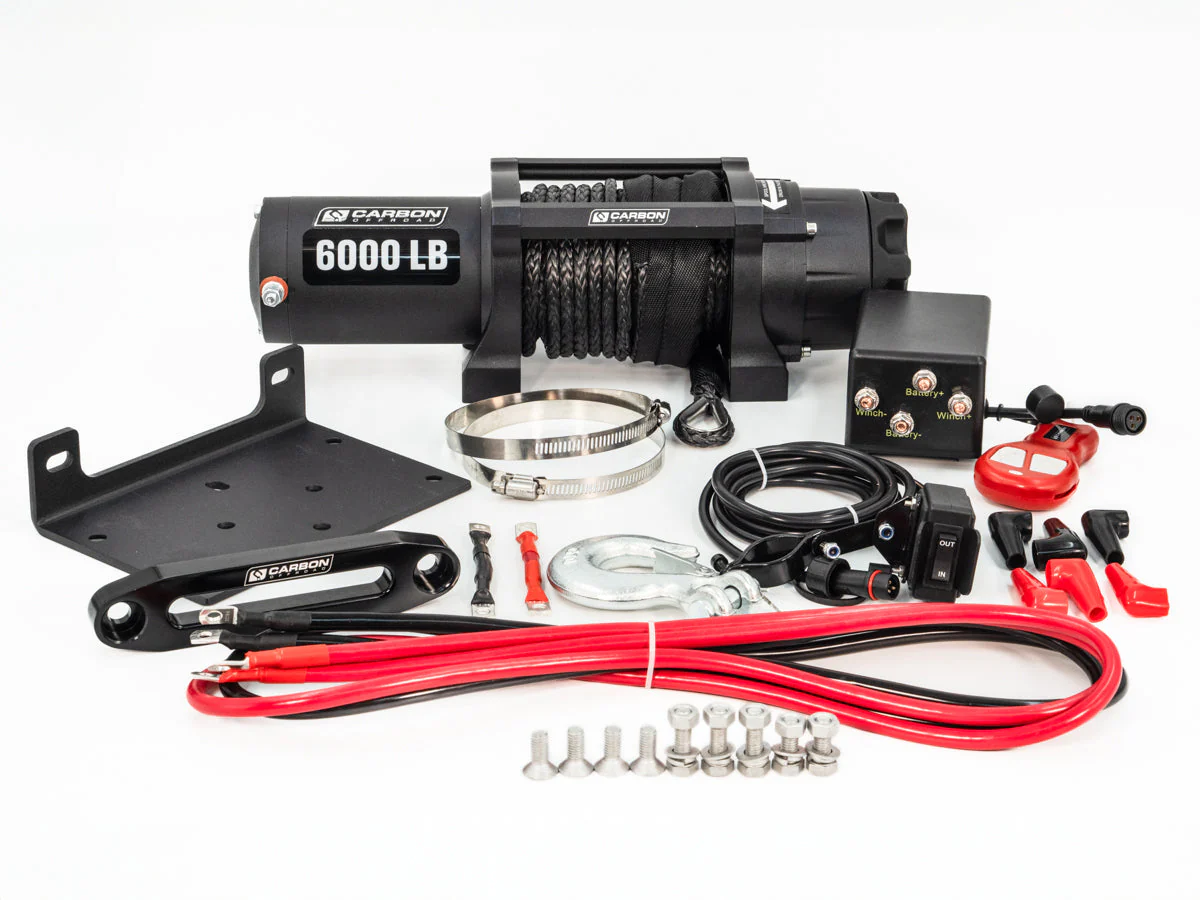

This kit comes with twin wireless remote controllers paired to the single receiver unit.
A small compact winch with integrated mounting plate makes mounting this winch is as simple as it can get to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Features and Benefits
- Durability: Sealed motor and geartrain allows for flawless operations in extreme conditions.
- Torque: Permanent magnet motor provides heavy duty torque for increased pulling power.

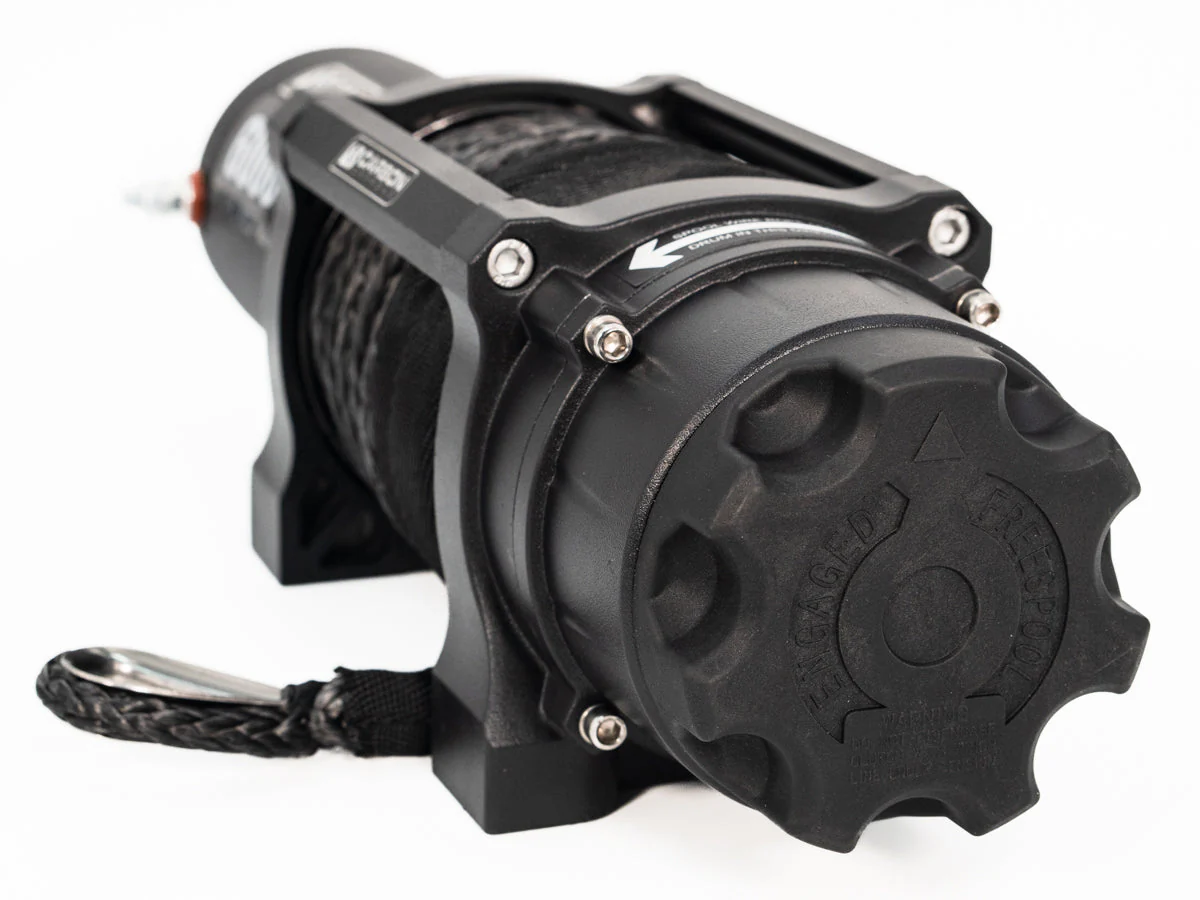

- Free-spooling: Cam action disengages gears for near silent free-spooling.
- Safety: Mechanical and dynamic brake offers increased control and prevents rollback.
The manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.
| Feature | Specification Metric (Imperial) |
|---|---|
| Rated Line Pull | 2721kg (6000lbs) |
| Motor | 12V DC 1.5HP motor |
| Geartrain | 3 Stage Planetary |
| Gear Ratio | 166:1 |

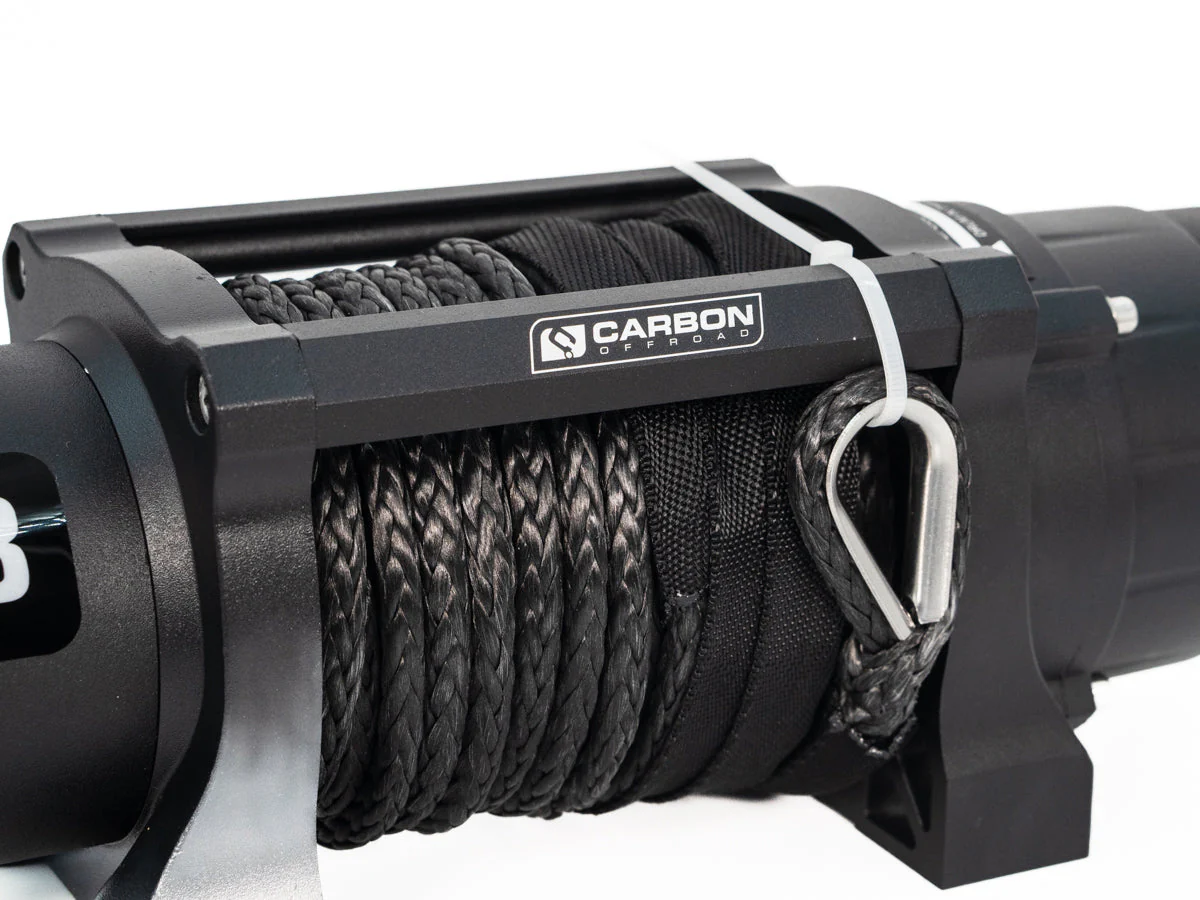

| Synthetic Rope | 13m x 6.0mm (42ft x 1/4") |

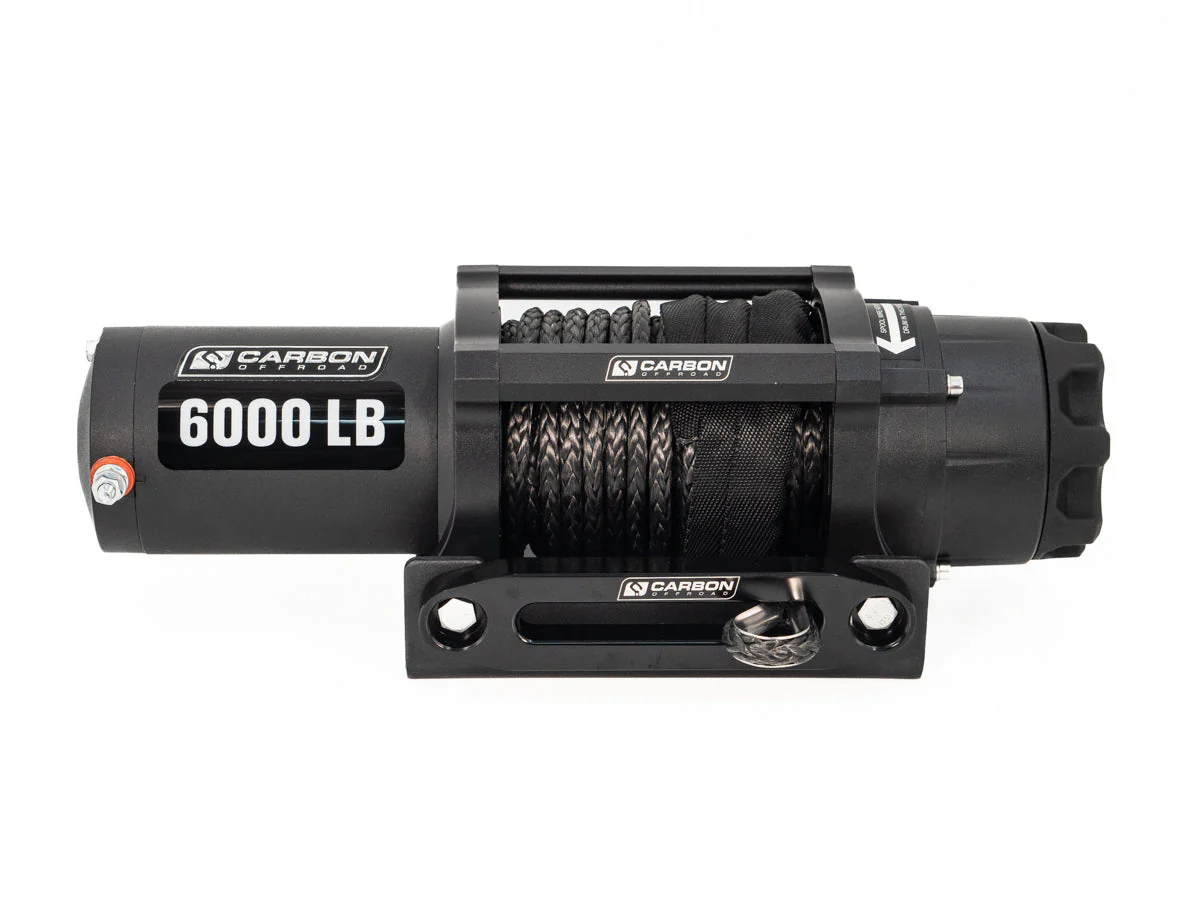

| Fairlead | Aluminium Hawse |
| IP Rating | IP66 (Winch and Controls) |
| Winch Dimensions | 350.5mm x 115mm x 120mm (13.8" x 4.5" x 4.7") |
| Mounting Bolt Pattern | 76mm x 167mm (3.0" x 6.59") |
| Shipping Weight | 12.2kg (26.9lbs) |
12V DC PERFORMANCE SPECS (first layer of drum)
| Line Pull Metric (Imperial) | Line Speed Metric (Imperial) | Motor Current @12V |
|---|---|---|
| 0kg (0lbs) | 6.2m/min (20.3fpm) | 30 Amps |
| 454kg (1000lbs) | 4.9m/min (16.1fpm) | 83 Amps |
| 907kg (2000lbs) | 3.9m/min (12.8fpm) | 136 Amps |
| 1361kg (3000lbs) | 3.3m/min (10.8fpm) | 168 Amps |
| 1814kg (4000lbs) | 2.6m/min (8.5fpm) | 232 Amps |
| 2721kg (6000lbs) | 1.5m/min (4.9fpm) | 320 Amps |
